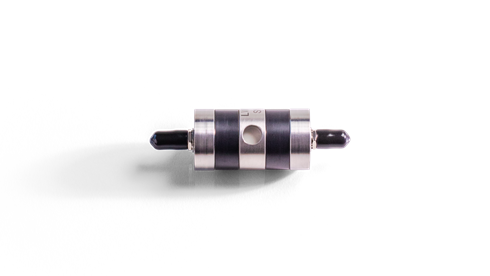

LPC-xxxCM Longpass Flow Cells
Product Details
LPC Longpass Flow Cells couple to Ocean Optics spectrometers and light sources for measurement of low-volume and low-concentration aqueous samples. The cells are available in standard and microvolume versions, with pathlengths ranging from 1 cm-500 cm and internal volume levels from 2.4 µL-1,250 µL.
LPCs use a capillary tube as both sample compartment and light waveguide. Chemical and biological samples such as proteins, nutrients and DNA are introduced with a syringe or a pump into the fluidic ports mounted on the face panel. Optical fibers connect to SMA 905 fittings to deliver and return light to the spectrometer.
The LPCs are ideal for various kinds of flow analysis and water monitoring, DNA and RNA quantification, protein determination and nutrient analysis.
Product Overview
Easy to Use
Inject sample with a syringe or connect to a pump
Multiple pathlengths
Options ranging from 1 cm to 500 cm
| Specifications | LPC-10MM | LPC-100MM | LPC-050CM | LPC-100CM | LPC-250CM | LPC-500CM |
| LPC Type | Microvolume | Microvolume | Standard | Standard | Standard | Standard |
| Optical Pathlength | 10 mm | 100 mm | 50 cm | 100 cm | 250 cm | 500 cm |
| Internal Volume | 2.4 μL | 24 μL | 125 μL | 250 μL | 625 μL | 1250 μL |
| Noise [mAU] | – | – | <0.1 | <0.2 | <0.5 | <1.0 |
| Maximum Pressure | 1000 PSI | 1000 PSI | 100 PSI | 100 PSI | 100 PSI | 100 PSI |
| Wavelength range (most efficient) | ~230-800 nm | ~230-800 nm | – | – | – | – |
| Refractive index @ 280 nm | <7 mAU | Not reported | – | – | – | – |
| For All Items | Description |
| Fiber Connection (SMA 905) | 500 μm |
| Wetted Material | PEEK, Plexiglas, Teflon, Stainless Steel or Ultem |
| Liquid Input Standard | 10-32 Coned Port Fitting |
