Process Monitoring in Industrial Environments

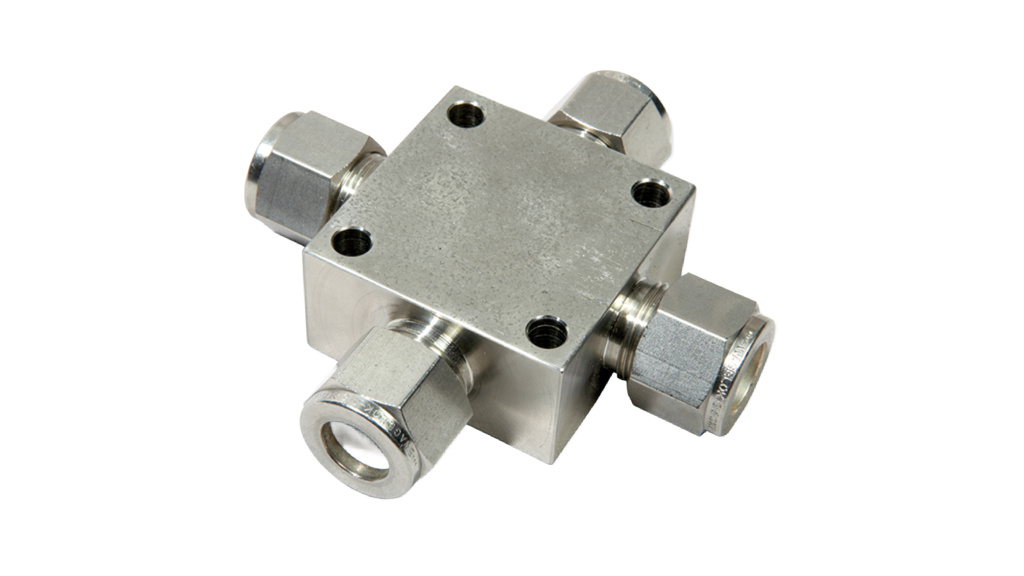

Rugged cross flow cells combine with Ocean Optics spectrometers and accessories for process monitoring in demanding industrial environments. The cells are available in 3/8” and ½” diameter, are available in stainless steel and other robust materials and have pathlengths adjustable from 0.1 cm-1.5 cm.

Each cross flow cell includes TFE and metallic ferrules, plus a pair of optical interface couplers (OICs) that collimate light and easily connect fiber optic cables to the flow cell, spectrometer and light source. OICs are also available for purchase separately.

Specifications	PRO-CFC-3-8	PRO-CFC-1-2
Cell Body (standard)	316 stainless steel	316 stainless steel
Other Body Materials (optional)	Titanium, Hastelloy C and Monel	Titanium, Hastelloy C and Monel
Cell Diameter	3/8″ (9.525 mm)	1/2″ (12.7 mm)
Pathlength (adjustable)	0.1-1.0 cm	0.1-1.5 cm
OIC Seal Material (standard)	Viton	Viton
Other OIC Seal Materials (optional)	Kalrez and Chemraz	Kalrez and Chemraz
OIC Optical Materials	Fused silica, sapphire or BK7	Fused silica, sapphire or BK7
OIC Window Materials	Fused silica or sapphire	Fused silica or sapphire
Fiber Terminations	SMA 905	SMA 905
Recommended Fiber	600 µm	600 µm
Pressure	2,000 psig	2,000 psig
Temperature	204 °C	204 °C
Wavelength Range	200-2400 nm	200-2400 nm
