ecoVis
Product Details
EcoVis is a compact, low-voltage Krypton light source covering a broad spectral range of 400–2500 nm. Designed with a built-in 1 cm pathlength cuvette holder, EcoVis is ideal for basic absorbance and fluorescence measurements in teaching labs and research environments.
Its rugged solid alloy housing ensures durability and efficient heat dissipation, while in-line fiber ports offer flexible connectivity for various setups. EcoVis’s small footprint (95 mm x 50 mm, 265 g) makes it a smart choice for space-constrained labs.
The integrated cuvette holder features a chromium-plated reflective insert that enhances fluorescence output, secures the cuvette in place, and rotates 90º to block the light path for dark measurements. This thoughtful design supports routine lab work with ease and reliability.
Product Overview
Broad Spectral Range
Covers UV to NIR for versatile absorbance and fluorescence measurements
Compact and Rugged Design
Small footprint and solid alloy housing make it ideal for space-limited, high-use lab environments
Integrated Filter Holder
Enhances fluorescence output and enables dark measurements with adjustable light path control
Specifications
Wavelength Coverage
400-2500 nm
| Specifications / Part Number | ecoVis |
| Wavelength Range | 400-2500 nm |
| Source | Krypton |
| Source Lifetime | 2000 hours |
| Drift | ≤0.5% per hour |
| Color Temperature | 2400K |
| Warm-up Time (time to stabilize) | 10 minutes |
| Power Supply Input | 100-240 V / 50-60 Hz / 150 mA |
| Power Supply Output | 3.5 Vdc / 1100 mA |
| Lamp Power | 1.3 W |
| Operating Humidity | 5-95% without condensation at 40 °C |
| Operating Temperature | Housing: 42 °C at 25 °C ambient Environment: 5 °C – 35 °C |
| Fiber Connector | SMA 905 |
| Integrated Cuvette Holder Path Length | 10 mm |
| Integrated Cuvette Holder z Dimension | 15 mm |
| Dimensions | 50 x 95 mm |
| Weight | 272 g |

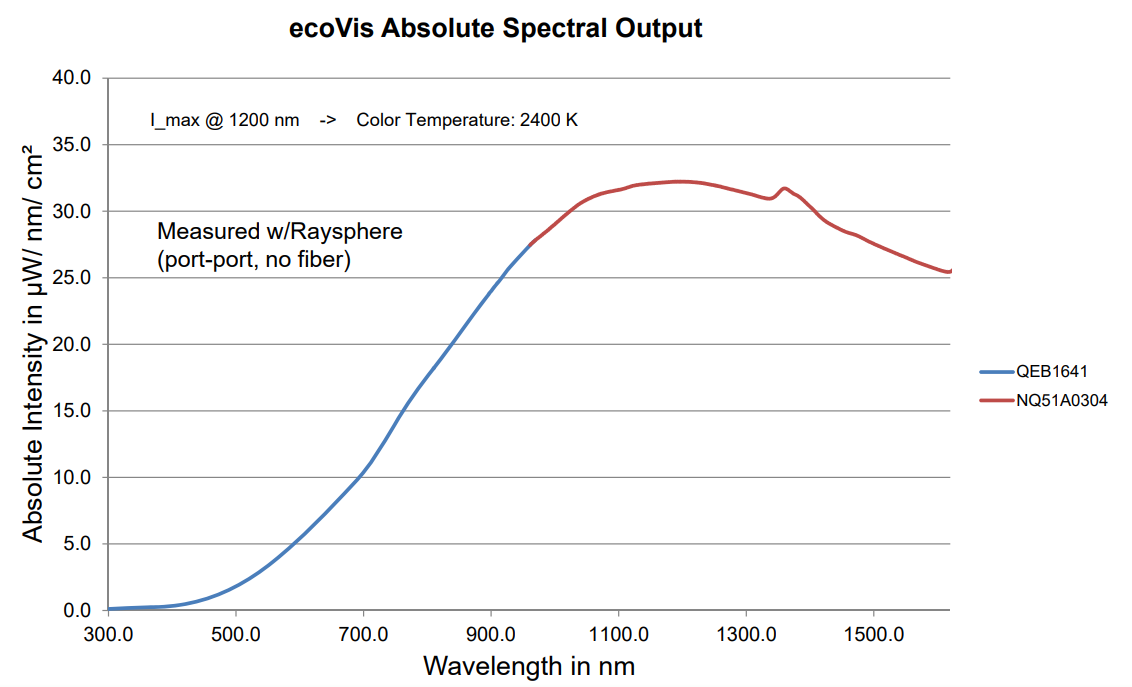

Spectral Output ecoVis
