Dual Wavelength and Industrial Process Raman Probes

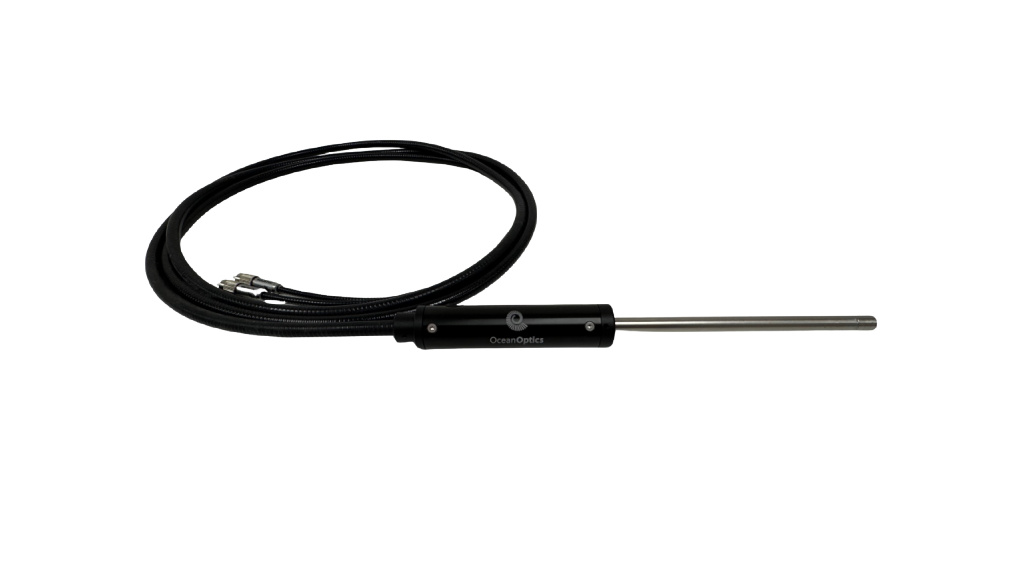

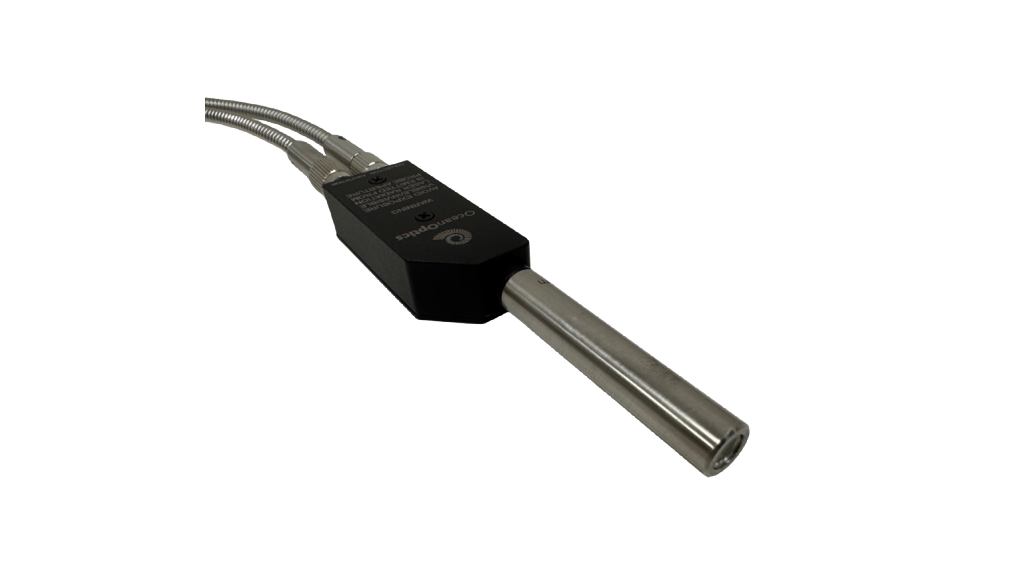

Ocean Optics offers advanced Raman probes designed to meet the demands of both research and industrial environments. Our Dual Wavelength Raman Probe features a colinear optical design and high-throughput optics for efficient, simultaneous measurements at 532/785 nm—ideal for complex sample interrogation. The Industrial Process Raman Probe is built for rugged applications, with a sealed, swageable lens shaft suitable for immersion, pressure, and vacuum conditions. Both probes incorporate backscattering optics for high collection efficiency and are compatible with a wide range of sample types including solids, liquids, and gases.

Specifications	ORP-DW-532-785	ORP-P785-6	ORP-XXX
Excitation Wavelength	532/785 nm	785 nm	532 nm, 638 nm, 785 nm, 830 nm, 1064 nm
Spectral Range	100-4000 cm-1 (The ultimate range is spectrograph/detector dependent)	100-4000 cm-1 (The ultimate range is spectrograph/detector dependent)	100-4000 cm-1 (The ultimate range is spectrograph/detector dependent)
Spot Size at the Sample	~100 microns for 100 µ core excitation optical fiber	100 µ for standard optical fiber (fiber core dependent)	100 µ for standard optical fiber (fiber core dependent)
Focal Length	9 mm standard (12,15, & 18 mm optional) Note: Probe efficiency decreases with increasing focal length.	9 mm standard (12,15, & 18 mm optional) Note: Probe efficiency decreases with increasing focal length.	9 mm standard (12,15, & 18 mm optional) Note: Probe efficiency decreases with increasing focal length.
Working Distance	NA	7 mm for standard lens	7 mm for standard lens
Numerical Aperture	NA	0.22 with standard lens	0.22 with standard lens
Focusing Lens Barrel	Non-immersion or sealed probe shaft	NA	NA
Probe Body Dimensions	3.8” length x 1.5” diameter	4.5” length x 1.3” diameter	2.25” L x 0.96” W x 0.58” H
Probe Body Material	Hard anodized aluminum	Hard anodized aluminum	Hard anodized aluminum
Probe Body Seal	NA	Buna-N O-ring	NA
Probe Shaft Dimensions	3/8”diameter x 6” length	3/8” diameter x 2” length	3/8” diameter x 2” length (custom lengths available)
Probe Shaft Tip Seal	NA	Kalrez® O-ring	NA
Probe Shaft Material	316 stainless steel (other metals such as Hastelloy and Inconel are available)	316 stainless steel (other metals are available)	316 stainless steel
Probe Shaft Window	NA	Sapphire (Fused silica available)	NA
Filter Efficiency	OD > 6 at laser wavelength	OD > 6 at laser wavelength	OD > 6 at laser wavelength
Operating Temperature	0 – 85 ⁰C (non-immersion shaft) 0 – 325 ⁰C (sealed shaft)	0 – 325 ⁰C	0 – 85 ⁰C
Maximum Operating Pressure	15 psi (non-immersion shaft) 6000 psi (sealed shaft)	6000 psi	15 psi
Fiber Configuration	100/200 µ core standard Note: Custom optical fiber cores are available.	105/600 µ core standard to laser and spectrometer respectively Note: Custom optical fiber cores are available.	100/600 µ core standard to laser and spectrometer respectively Note: Custom optical fiber cores are available.
Fiber Optic Cable	3 m reinforced stainless steel armor cable standard Note: Custom lengths are available.	3 m reinforced stainless steel armor cable standard Note: Custom lengths are available.	1 m reinforced stainless steel armor cable standard Note: Custom lengths are available.
Coupling System	Laser (FC), Spectrometer (SMA)	Laser (FC), Spectrometer (SMA)	Laser (FC), Spectrometer (SMA)
