Liquid Waveguide Capillary Cells
Product Details

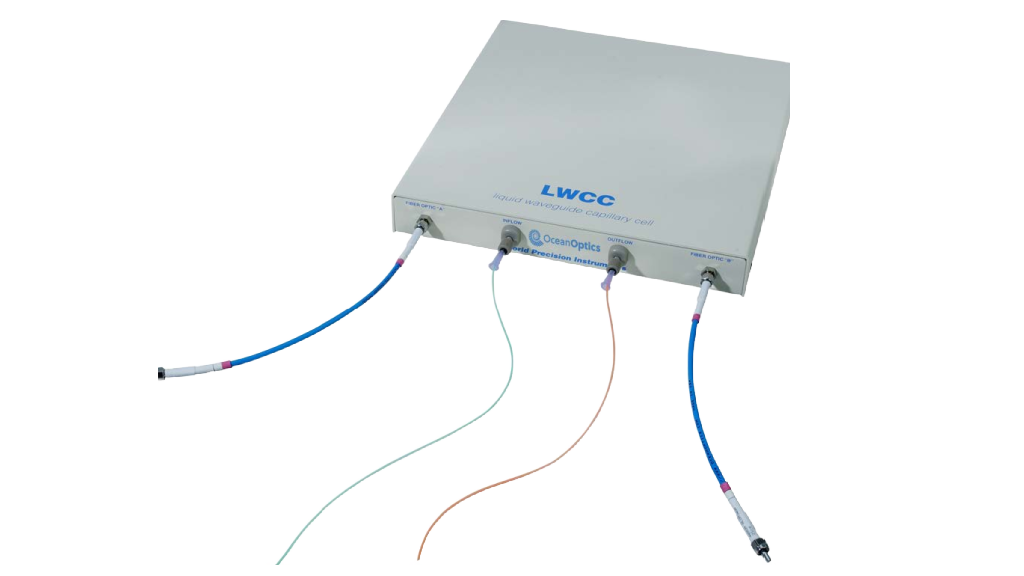

Liquid Waveguide Capillary Cell (LWCC) is a flow cell for absorbance measurements in the ultraviolet, visible and near infra-red ranges.
These liquid waveguide capillary cells are available in path lengths ranging from 50-500 cm, with internal sampling volumes ranging from 125 μL for a 50 cm pathlength cell to 1,250 μL for a 500 cm pathlength cell. Cells are responsive from ~230-800 nm, with higher starting wavelengths for the longer path length versions.
The LPC Flow Cells were fiber-coupled alternatives to standard cuvettes. Units can be directly connected to a pump or fluid injection analysis system or filled with a syringe. The LPCs are ideal for various kinds of flow analysis and water monitoring.
Product Overview
Sample Volume
Ranges from 125 μL up to 1,250 μL
Pathlengths
Available from 50 to 500 cm
| Specifications | LPC-050CM | LPC-100CM | LPC-250CM | LPC-500CM |
| LPC Type | Standard | Standard | Standard | Standard |
| Optical Pathlength | 50 cm | 100 cm | 250 cm | 500 cm |
| Internal Volume | 125 μL | 250 μL | 625 μL | 1250 μL |
| Noise [mAU] | <0.1 | <0.2 | <0.5 | <1.0 |
| Maximum Pressure | 100 PSI | 100 PSI | 100 PSI | 100 PSI |
| Wavelength range (most efficient) | 230-800 nm | 230-730 nm | 250-730 nm | 280-730 nm |
| Liquid Input Standard | 10-32 Coned Port Fitting | 10-32 Coned Port Fitting | 10-32 Coned Port Fitting | 10-32 Coned Port Fitting |
| Wetted Material | PEEK, Plexiglas, Teflon, Stainless Steel or Ultem | PEEK, Plexiglas, Teflon, Stainless Steel or Ultem | PEEK, Plexiglas, Teflon, Stainless Steel or Ultem | PEEK, Plexiglas, Teflon, Stainless Steel or Ultem |
