DH-3P and HL-3P
Product Details
Radiometrically calibrated light sources from Ocean Optics are used to calibrate the absolute spectral response of a spectrometer system. Using these light sources and our software, you can determine absolute intensity values across UV, Visible and NIR wavelengths.
Radiometrically calibrated light sources are carefully characterized to deliver a known quantity of light with very low uncertainty. Each source is measured to NIST-traceable standards, creating an unbroken chain of traceability and providing you with the highest quality and most reliable data.
Ocean Optics offers radiometric calibration, performed in an ISO 17025-certified lab.
Product Overview
Stable
Provide consistent output for the most reliable data
Multiple Options
Radiometrically calibrated sources for UV-Visible-NIR and Visible-NIR wavelengths
Digital Calibration Data
Can be loaded into software for absolute intensity data
Applications Flexibility
Measure LEDs, digital displays and other radiant sources
Specifications
Wavelength Coverage
See details below
| Specifications | DH-3P-CAL | DH-3P-BAL-CAL | HL-3P-CAL | HL-3P-INT-CAL |
| NIST Traceable Calibration Wavelength | Cosine corrector fiber Standard: 210-1100 nm Extended: 210-2400 nm Bare fiber Standard: 250-1100 nm Extended: 250-2400 nm | Cosine corrector fiber Standard: 230-1100 nm Extended: 230-2400 nm Bare fiber Standard: 250-1100 nm Extended: 250-2400 nm | Cosine corrector fiber Standard: 350-1100 nm Extended: 350-2400 nm Bare fiber Standard: 350-1100 nm Extended: 350-2400 nm | Integrating Sphere Standard: 350-1100 nm Extended: 350-2400 nm |
| Source | Deuterium & Tungsten Halogen | Deuterium & Tungsten Halogen | Tungsten Halogen | Tungsten Halogen |
| Nominal Bulb Power | 25 W (deuterium), 20 W (tungsten halogen) | 25 W (deuterium), 20 W (tungsten halogen) | 5 W | 5 W |
| Calibrated For | Absolute Irradiance (µW/cm2/nm) | Absolute Irradiance (µW/cm2/nm) | Absolute Irradiance (µW/cm2/nm) | Absolute Irradiance (µW/cm2/nm) |
| Calibration Lifetime | 50 hours | 50 hours | 50 hours | 50 hours |
| Drif (Voltage) | ≤0.01% per hour | ≤0.01% per hour | ≤0.3% per hour | ≤0.3% per hour |
| Minimum Uncertainty Level | 3.7% at 700 nm | 4.0% at 700 nm | 3% | 7% |
| Stability (Current) | <5 x 10-6 peak-to-peak (0.1-10.0 Hz) | <5 x 10-6 peak-to-peak (0.1-10.0 Hz) | 0.5% peak-to-peak | 0.5% peak-to-peak |
| Warm-up Time | 40 minutes (deuterium) | 40 minutes (deuterium) 20 minutes (tungsten halogen) | 15 minutes | 15 minutes |
| Safety & Regulatory | CE, ROHS, WEEE | CE, ROHS, WEEE | CE, ROHS, WEEE | CE, ROHS, WEEE |
| Operating Humidity Specification | 5-95% without condensation at 40°C | 5-95% without condensation at 40°C | 5-95% without condensation at 40 °C | 5-95% without condensation at 40 °C |
| Operating Temperature | 5 °C – 35 °C | 5 °C – 35 °C | 5 °C – 35 °C | 5 °C – 35 °C |
| Shutter | Yes | Yes | Yes | NA |
| Dimensions | 15 x 13.5 x 28.5 cm | 15 x 13.5 x 28.5 cm | 14 x 6 x 6 cm | 14 x 6 x 6 cm |
| Weight | 6 kg | 6 kg | 0.5 kg | 0.5 kg |
| Power Consumption | Approx 78VA | Approx 78VA | 1.2 A @ 12 VDC | 1.2 A @ 12 VDC |
| Power Requirements | 85-264 V 50/60 Hz | 85-264 V 50/60 Hz | 85-264 V 50/60 Hz | 85-264 V 50/60 Hz |
| Fiber Connector | SMA 905 CC-3-UV-S or 6.35 mm barrel for cosine corrector | SMA 905 CC-3-UV-S or 6.35 mm barrel for cosine corrector | SMA 905 CC-3 | Integrating sphere FOIS-1 |

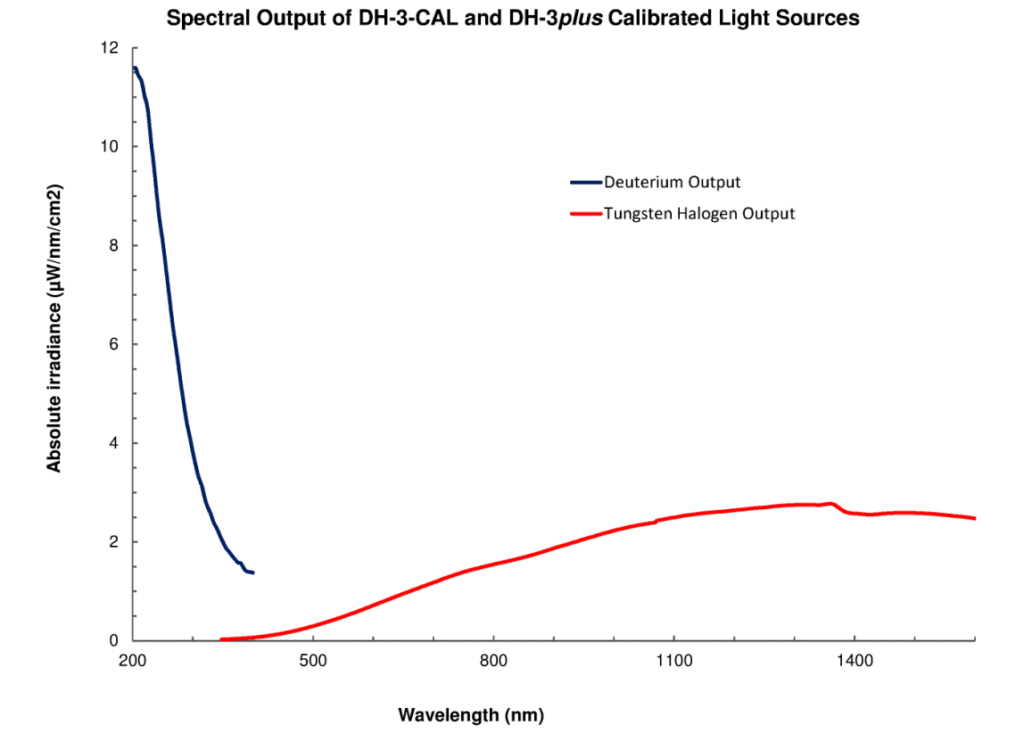

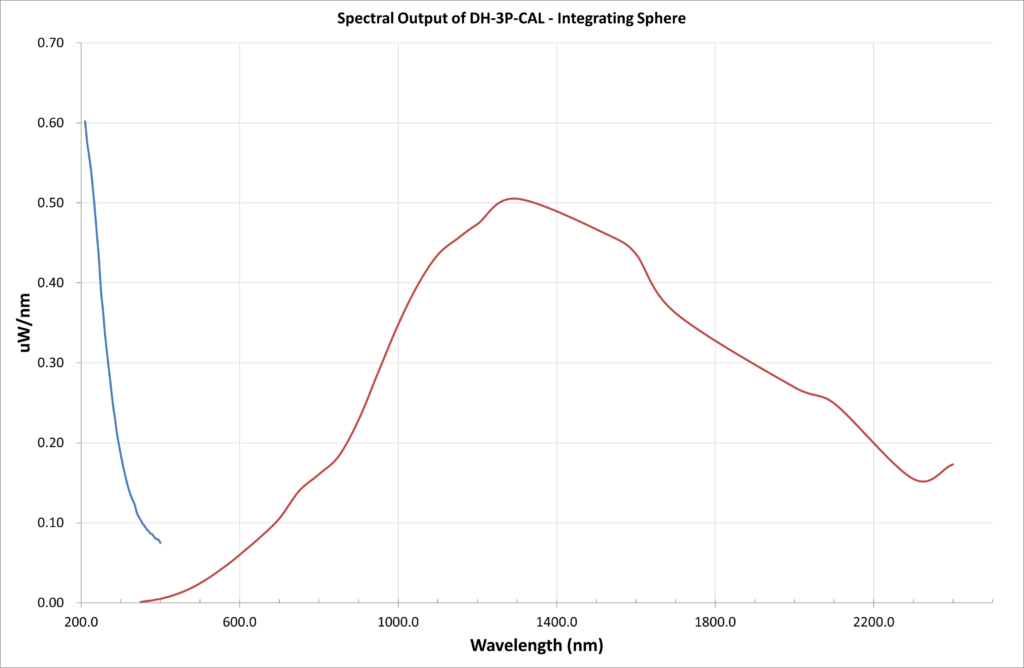

Spectral Output DH-3

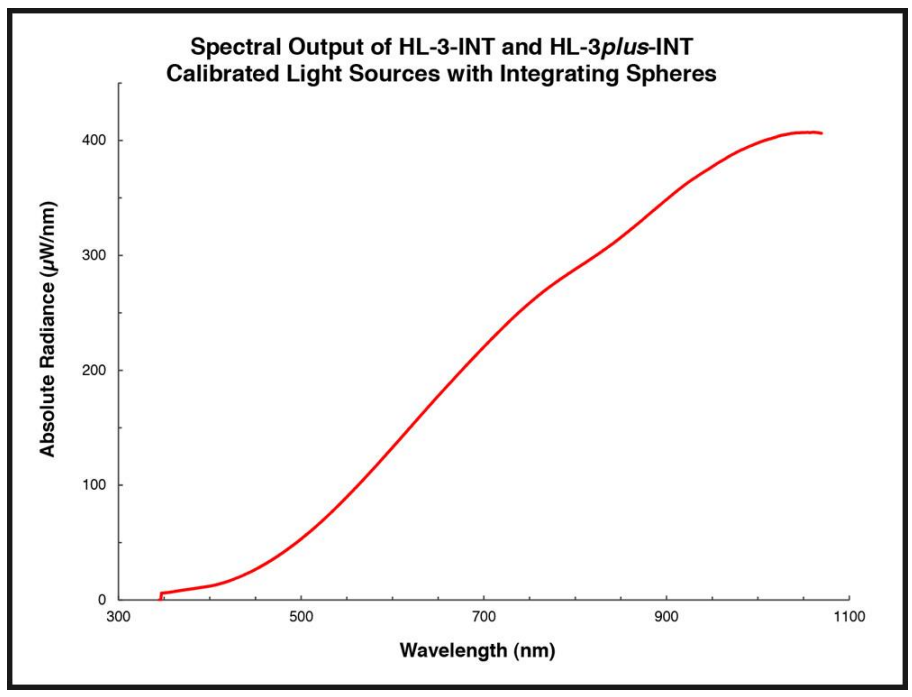

Spectral Output HL-3
