LIBS Multichannel Spectrometer
Ocean MX Multichannel Spectrometer
Ideal for LIBS Elemental Analysis
Laser-Induced Breakdown Spectroscopy (LIBS) enables rapid elemental analysis of solids, liquids, and gases with minimal sample preparation. By using a high-energy pulsed laser to generate a microplasma on the sample surface, LIBS captures elemental emission spectra that reveal both material and elemental composition.
The Ocean MX Multi-Channel Spectrometer is an excellent choice for LIBS systems, combining broad spectral coverage, high-speed acquisition, and simultaneous multi-channel detection. This architecture enables efficient capture of elemental emission signatures across a wide wavelength range, supporting accurate and repeatable materials analysis.Laser Induced Breakdown Spectroscopy (LIBS) is a type of atomic emission spectroscopy. It allows qualitative and quantitative analysis of almost all elements in solid, liquid and gas phase matrices. Unlike conventional detection methods such as ICP-OES or XRF, LIBS eliminates the need for complex sample preparation during the detection process.
Ready to Build Your LIBS Solution?
Whether you’re developing a laboratory instrument, integrating LIBS into a manufacturing process, or designing a custom analyzer, our spectroscopy experts can help configure the Ocean MX Multi-Channel Spectrometer to meet your performance, wavelength, and integration requirements.
Proven for Demanding LIBS Applications
Metals & Alloy Identification
Battery Materials Analysis
Mining & Geological Analysis
Forensics & Biomedical Studies
Art Restoration & Conservation
Built for High-Performance LIBS Systems

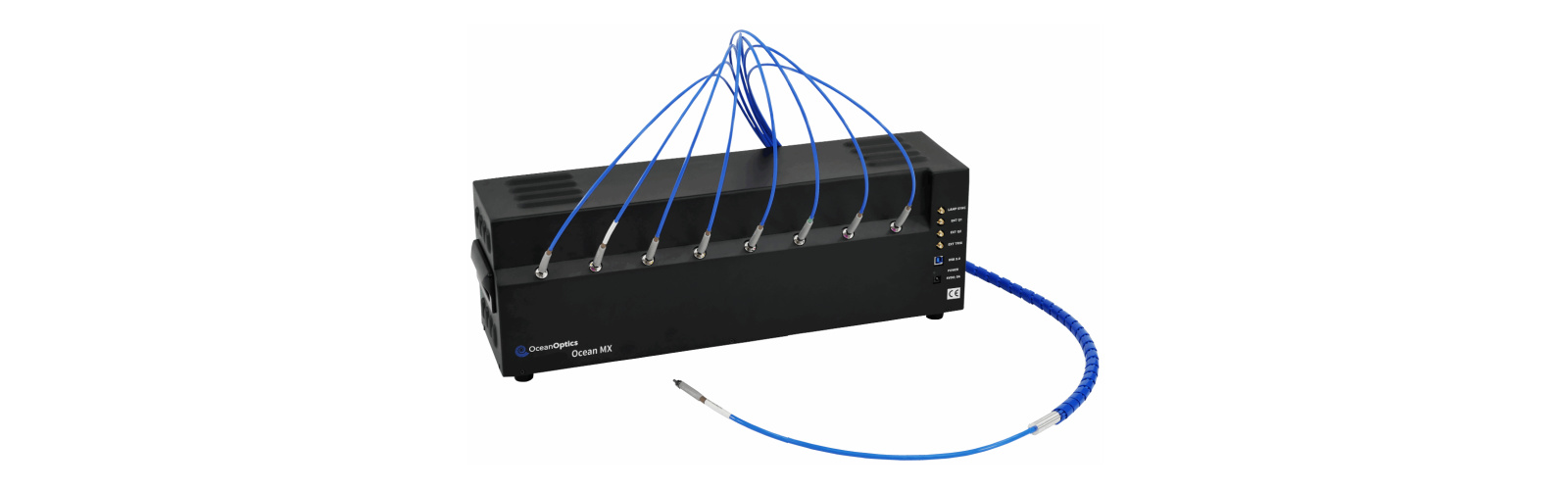

The Ocean MX Multi-Channel Spectrometer is designed for demanding LIBS applications, providing broad spectral coverage from approximately 180-1100 nm through four or seven synchronized spectrometer channels. Built on Ocean Optics Ocean HR2 spectrometers, Ocean MX enables users to configure a system that balances wavelength coverage, resolution, and detection performance for their specific application.
A high-precision synchronization clock coordinates all channels for accurate delayed acquisition, allowing the system to capture complete atomic emission spectra at the optimal point of plasma evolution. This synchronized architecture improves measurement accuracy and supports reliable elemental analysis across complex samples.
Ocean MX also features flexible triggering and integration capabilities, including multiple digital I/O connections that can be programmed to control acquisition timing and coordinate system events. It supports a variety of triggering modes, including laser-triggered, dual-laser, manual, and spectrometer-triggered operation, making it easy to integrate with a wide range of lasers, plasma excitation sources, and custom analytical instruments.
Key Benefits
- Broad UV-Vis-NIR Coverage
- Simultaneous Multi-Channel Acquisition
- High Resolution Performance
- Accurate Plasma Capture
- Flexible System Integration
- Advanced Trigger Control
- Compatible with Multiple Lasers
- Configurable for LIBS Applications
- CE Certified
Specifications
| Part Number | Description | Channels | Wavelength Range | Optical Bundle Fiber* | Collimating Lens* | Software* |
| LIBS-HR-2-UV-VIS-NIR | Ocean MX LIBS UV-VIS-NIR Multichannel Spectrometer | 7 | ~185-970 nm | LIBS-BUN-7 | LIBS-COLL | Ocean LIBS |
| LIBS-HR-2-UV-VIS | Ocean MX LIBS UV-VIS Multichannel Spectrometer | 4 | ~185-590 nm | LIBS-BUN-4 | LIBS-COLL | Ocean LIBS |
| LIBS-HR-2-VIS-NIR | Ocean MX LIBS VIS-NIR Multichannel Spectrometer | 4 | ~400-800 nm | LIBS-BUN-4 | LIBS-COLL | Ocean LIBS |
System Specifications
| Specifications | Ocean MX Multi-Channel Spectrometer |
| Signal to Noise Ratio | 380:1 |
| A/D Resolution | 16 bits |
| Number of Channels | 4 or 7 channels |
| Resolution | Typical 0.1 nm (FWHM) |
| Detection | Linear CCD |
| Scan Rate | 725 Hz |
| Spectrometer Integration Time | 1 μs – 2s |
| Ocean MX LIBS Minimum Integration Time | 1 μs |
| Minimum Delay Time After Acquire Laser Trigger Signal | 0 μs |
| Trigger Delay | -450 μs to 450 μs |
| Step Time | 13.8 ns |
| Trigger Jitter | 21 ns |
| Trigger Level | TTL not to exceed 5.5V |
| Interface | USB 3.0 |
| Operation System | Windows 7/8/10/11 32 bit or 64 bit |
| Software | Ocean LIBS |
| Power Requirement | 5 volts/5 amp |
| Input Optical Fiber | Sampling probe containing 4 or 7 fibers, 2 meters long (other lengths available) with 74-UV collimating lens and a sampling lens |
| Dimensions | 585 mm x 165 mm x 210 mm (7 channels) 345 mm x 165 mm x 210 mm (4 channels) |
| Weight | 13 kg (7 channels) or 7 kg (4 channels) |
