Quartz Cuvettes

Quartz sample cells cuvettes for absorbance, transmission and fluorescence measurements are suitable for use from 170-2700 nm. They will fit securely into our cuvette holders.

Options are available to meet your fill volume requirements and measurement needs. With proper care and maintenance, cells can be reused effectively for as long as they remain free of scratches, cracks and similar imperfections.

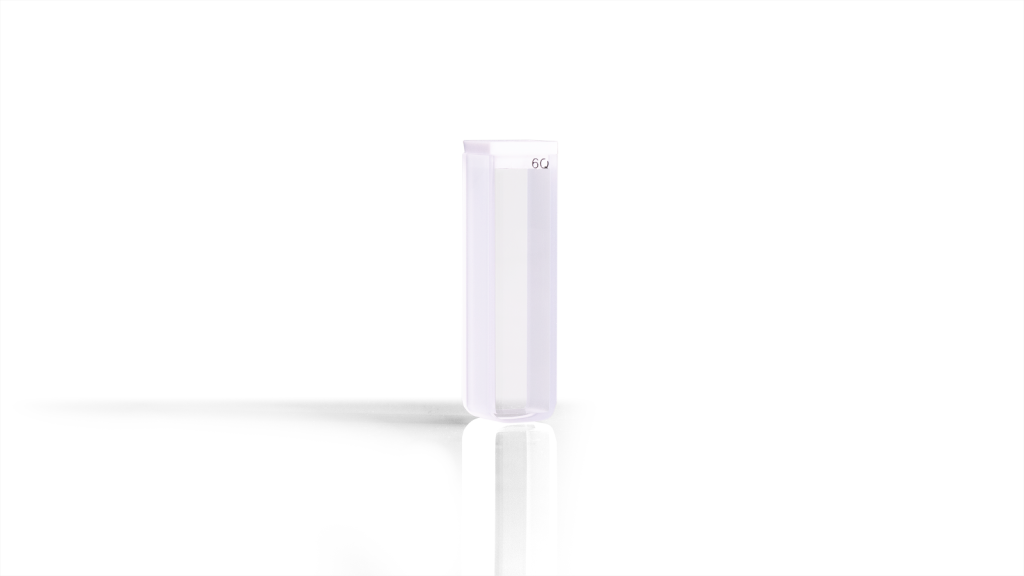

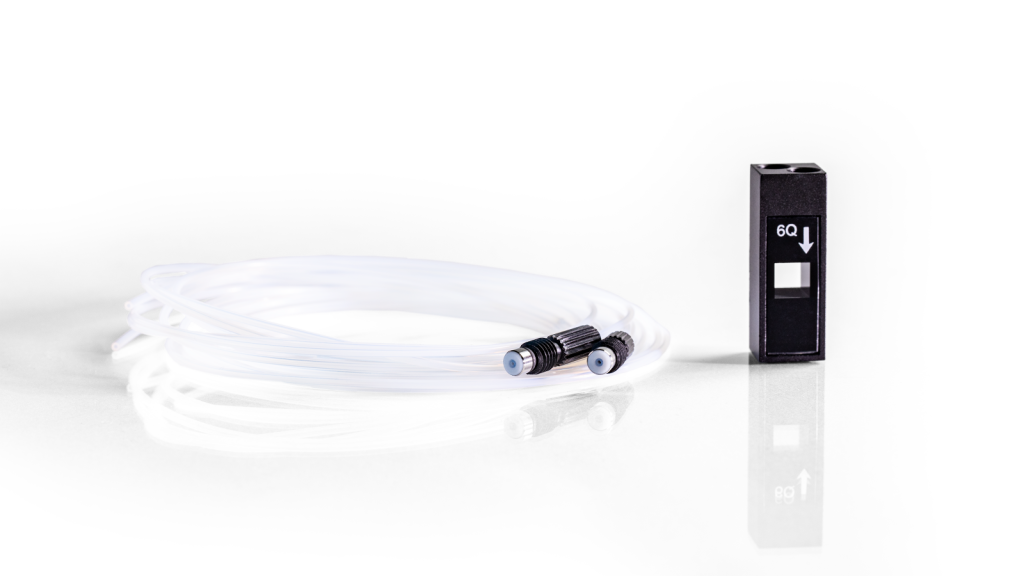

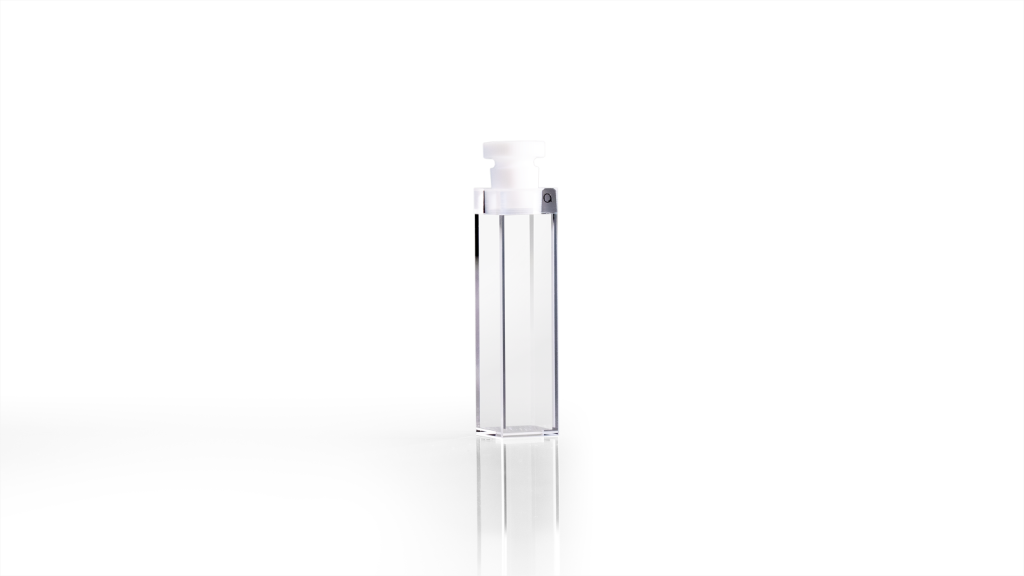

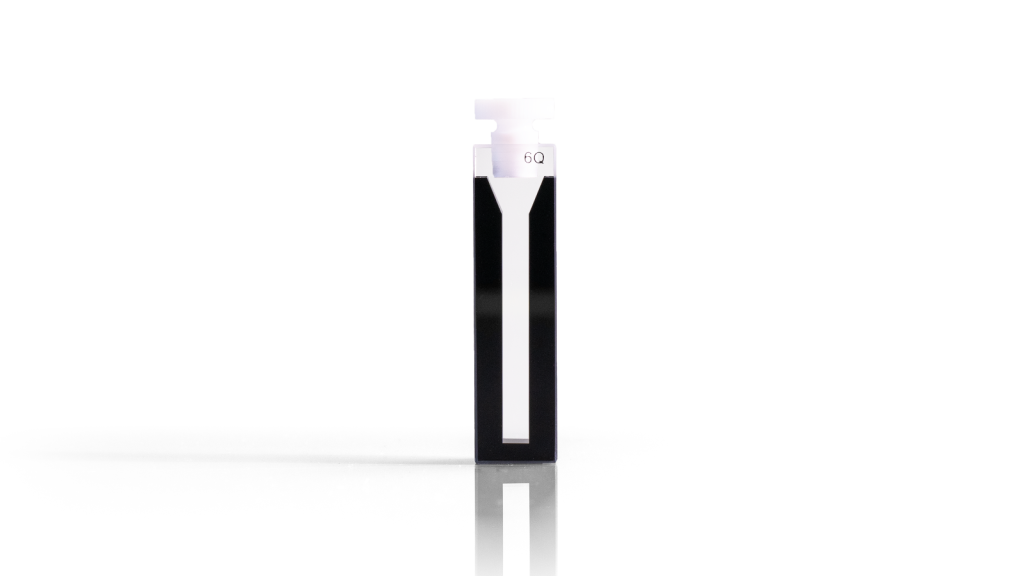

Specifications	CVFL-Q-10	CVF-Q-10	CV-Q-10	CV-Q-100	CVS-Q-10
Description	Fluorescence standard rectangular	Flow cell with M6 threaded connectors	Standard rectangular	Cylindrical long pathlength	Self-masking semi-micro
Filling Volume	3.5 mL	0.42 mL	3.5 mL	28.2 mL	1.4 mL
Pathlength	1 cm	1 cm	1 cm	10 cm	1 cm
Wavelength Range	170-2700nm	170-2700nm	170-2700nm	170-2700nm	170-2700nm
Clear Windows	4	2	2	2	2
Cover	PTFE stoppers (non-sealing)	M6 screws	PTFE cover (non-sealing)	PTFE stoppers	PTFE stoppers
Exterior Dimensions	12.5 mm x 12.5 mm x 45 mm (WLH)	12.5 mm x 102.5 mm x 35 mm (WLH)	12.5 mm x 12.5 mm x 45 mm (WLH)	22 mm OD x 102.5 mm length	12.5 mm x 12.5 mm x 48 mm (WLH)
Interior Dimensions	10 mm x 10 mm (WL)	6.5 mm x 10 mm x 6.5 mm (WLH)	10 mm x 10 mm (WL)	19 mm x 100 mm (WL)	4 mm x 10 mm (WL) x 2.5 mm thickness
