Raman Probe Sample Holders
Ocean Optics offers sample holders for Raman analysis of liquids and solids. The holders accommodate Raman probes from 9.5 mm-12.7 mm diameter, and 1 cm pathlength cuvettes and vials of various dimensions.
RM-SERS-SHS-MP
Ideal for SERS substrates
RM-LQ-SHS
Accommodates vials and cuvettes
OOA-RAMAN-SH
Holder for vial and cuvette measurements
OOA-RAMAN-RFA
Holder for Raman, fluorescence, absorbance and reflectance

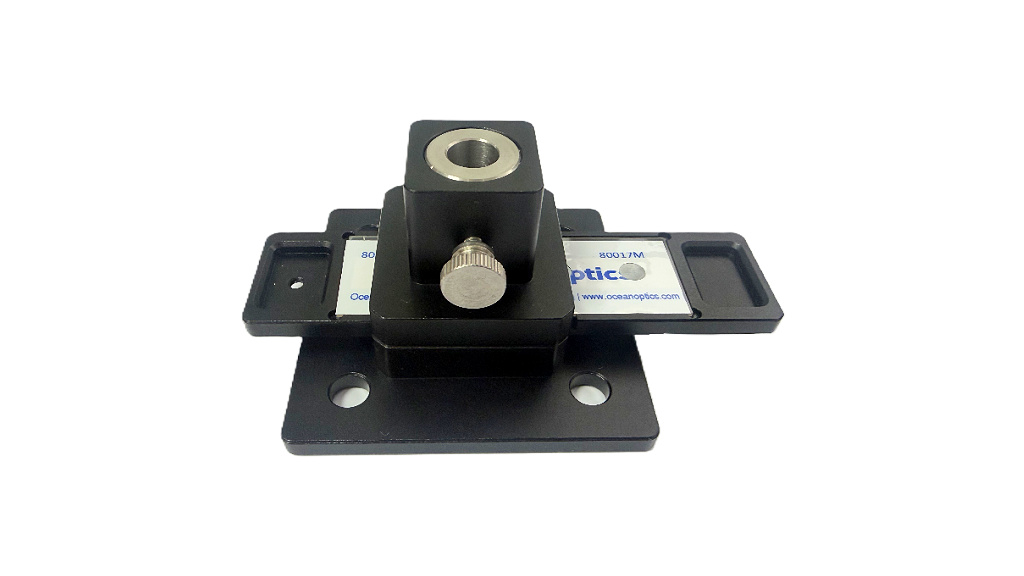

The RM-SERS-SHS-MP holder is ideal for surface enhanced Raman spectroscopy (SERS) substrates, which comprise nanoparticle chemistries on slides. The holder accommodates standard glass SERS slides and connects to a Raman probe. The RM-SERS-SHS-MP provides accurate positioning for the Raman measurement, avoids the influence of ambient light, and improves the accuracy of the Raman measurement.
The RM-LQ-SHS holder accommodates vials and cuvettes. It has a magnetic cover, making it easy to load and unload samples, block ambient light, and improve the accuracy of Raman measurements.

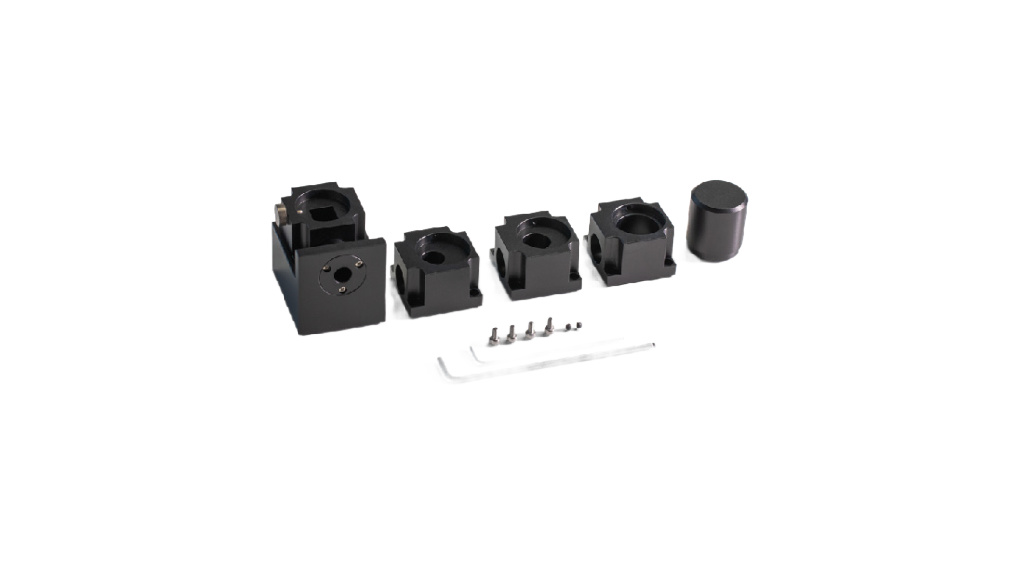

The OOA-RAMAN-SH sample holder allows for vial and cuvette measurements with a positioning screw to optimize the focus of the laser onto the sample.

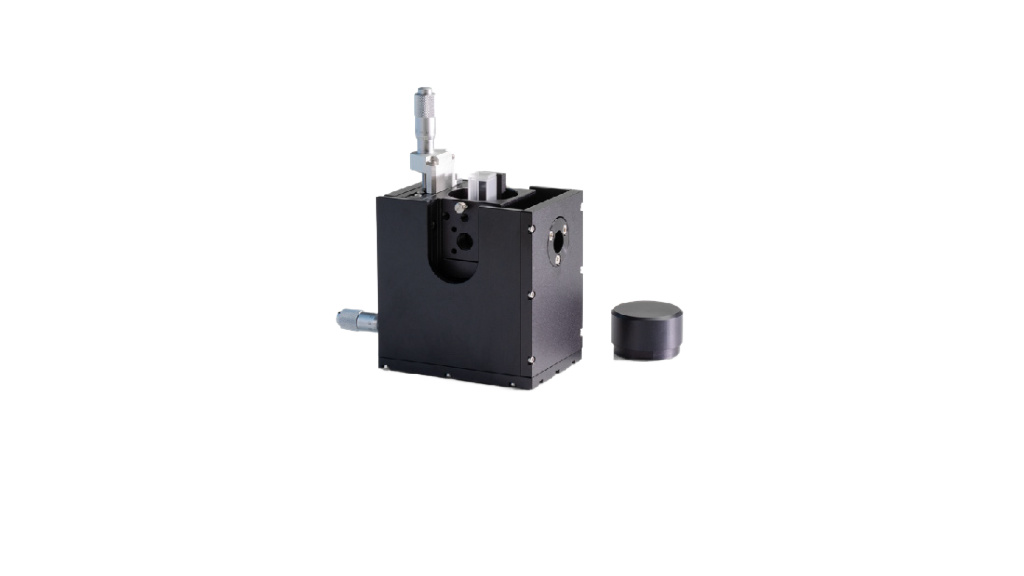

The OOA-HOLDER-RFA is a multipurpose sampling fixture that acts as a holder for Raman, fluorescence, absorbance and reflection measurements. Unlike other Raman sample holders, the OOA-HOLDER-RFA can be adjusted for a variety of lab techniques.
| Part Number | RAM-SERS-SHS-MP | RM-LQ-SHS | OOA-RAMAN-SH | OOA-HOLDER-RFA |
| Base Material | Aluminum | Aluminum | Aluminum | Aluminum |
| Cuvette Type | Standard microscope slide 75 x 25 mm or SERS substrates | 1 cm pathlength square or 15 mm OD vials | 1 cm pathlength square | 1 cm and 0.1 cm |
| Probe Diameter | 9.5 mm | 9.5 mm | 9.5 mm | Raman: 9.5 mm or 12.7 mm Reflection: 6.35 mm |
| Translation Stage | No | No | Yes | Yes |
| Mirror/cuvette plugs | No | Yes | No | Yes |
| Dimensions (LWH) | 75 x 75 x 45 mm | 115 x 80 x 70 mm | 80 x 47 x 81 mm | 110 x 70 x 130 mm (standard) 155 x 70 x 162 mm (optional) |
| Temperature Range | -20°C to 80°C | -20°C to 80°C | -20°C to 80°C | -20°C to 80°C |
Video Tutorial II.

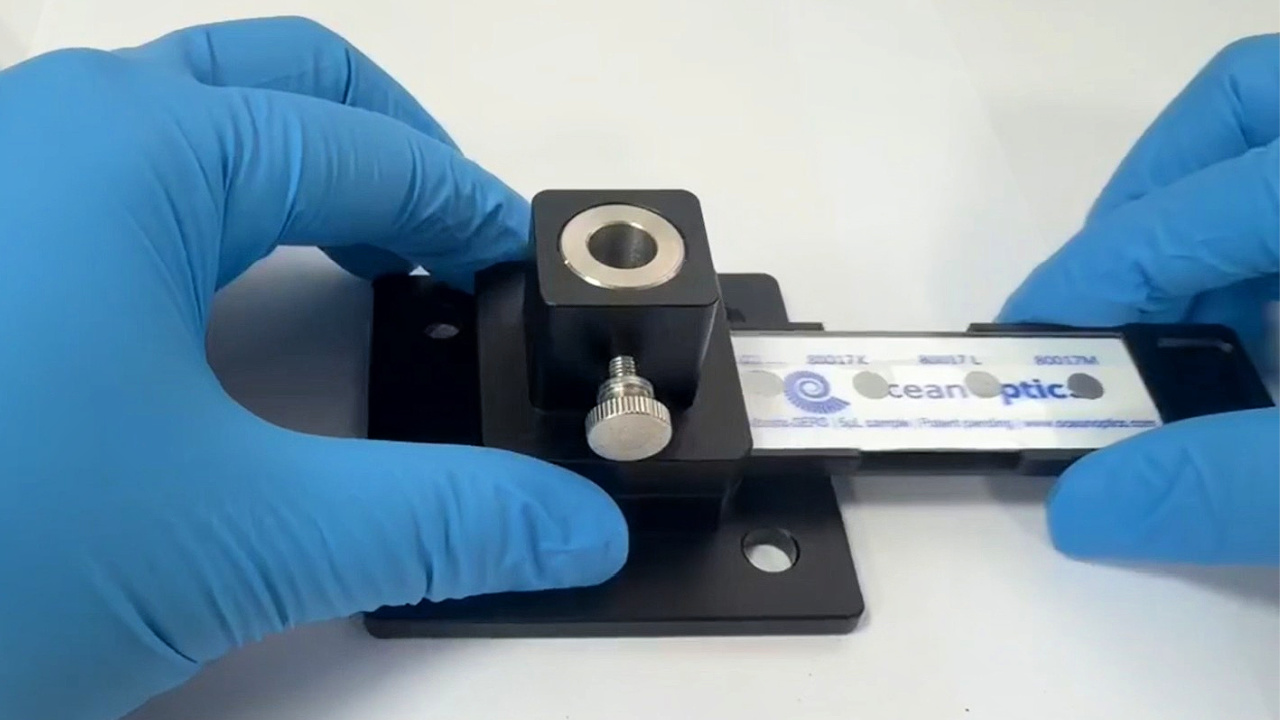

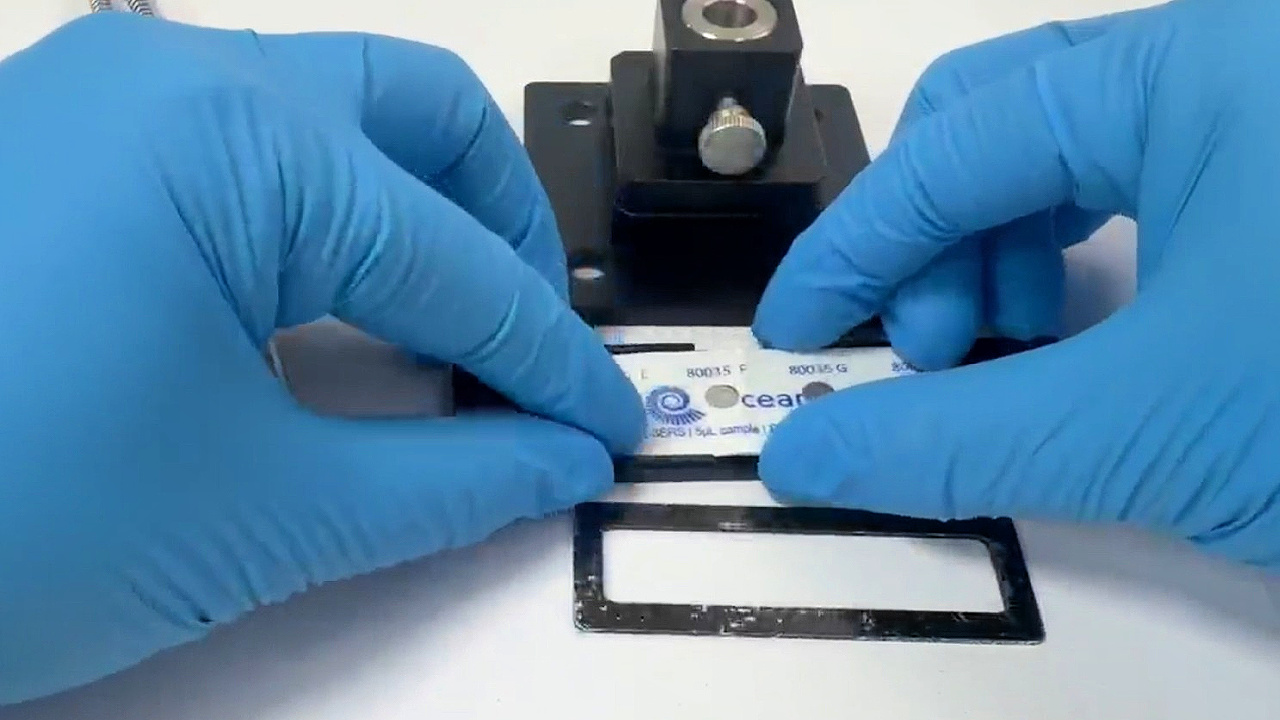

How to use the RM‑SERS‑SHS‑MP sample holder with the flexible and adhesive RAM‑SERS‑LP‑1 SERS substrate
